XML (Extensible Markup Language) is a standard protocol developed by John Bosak and members from the World Wide Web Consortium W3C (http://www.w3.org/XML). It roots back to 1969, Charles Goldfarb, an IBM researcher who was in charge of the Generalized Markup Language (GML) design team. Although SGML is an International standard for marking up data, it has the following weaknesses: extreme complex, expensive to implement, and no support in common browsers such as Netscape and Internet Explorer. While HTML is free and simple, but is not able to describe the data it is representing
. The XML was developed to overcome shortcomings of
SGML and HTML. XML promises to increase both the efficiency and the flexibility
of handling computerized information as needed in E-Commerce, for example you
can specify a new set of user defined tags: <PRICE> and </PRICE>
that is unique to some specific applications and is not limited by the tags
available from HTML.
· A meta language for describing data (meta-data)
· A standard protocol for exchanging and publishing information in a structured manner
A quick look of an
XML markups document:
<?xml
version=“1.0”?>
<!—dataset.xml
-->
<dataset>
<row num=“1”>
<lastname>SMITH</lastname>
<firstname>Dan</firstname>
<salary>80000</salary>
<jobtitle>Web Developer
<jobtitle>
</row>
</dataset>
Contents of this XML page include the
)
Additional highlights of XML are:
The design goals
for XML are: (source – http://www.w3.org/TR/REC-xml/)
2.
XML shall support a wide variety of applications.
3.
XML shall be compatible with SGML.
4.
It shall be easy to write programs which process XML documents.
5.
The number of optional features in XML is to be kept to the absolute
minimum, ideally zero.
6.
XML documents should be human-legible and reasonably clear.
7.
The XML design should be prepared quickly.
8.
The design of XML shall be formal and concise.
9.
XML documents shall be easy to create.
10.
Terseness in XML markup is of minimal importance.
XML in 10 points
(source- http://www.w3.org/XML/1999/XML-in-10-points)
Examples
of XML Applications
·
Separation of data storage and display within HTML pages - we can use XML to carry data. The data in an XML
file can be loaded into HTML pages as “data islands” and then using HTML for
data layout and display.
In addition to an XML file
itself, some files and programs are needed for processing an XML-compliant
applications:
o
SAX
(Simple API for XML) http://www.saxproject.org/
- is originally a Java-only API. The current version is SAX 2.0.1, and
there are versions for several programming language environments other than
Java.
XML Syntax and Terminology
are rewritten, in XML, as empty tag notation which
is ended with a forward slash.
which have no text appearing between two tags,
Start
Tag:<ElementName AttributesName="AttributeValue">
End
Tag: </ElementName>
The XML declaration appears at
the first line of an XML document, before the content:
<?xml
version=”versionumber”
encoding=”encoding_declaration”
standalone=”yes_or_no”
?>
This declaration is interpreted
as the following:
Version Declaration (required):
Encoding Declaration (optional):
Standalone Document Declaration
(optional):
XML pages can be created with any text editor. We will use a Microsoft
Notepad editor to create the following email XML example
page, save it as email.xml, and view it with
Internet Explorer .
Example 1: A well-formed email is prepared in XML
format. The XML declaration appears first line to show the version of XML
standard and encoded language code. It follows by a comment line, which shows
the XML file name with .xml as the extension. View email.xml
example.
<?xml
version="1.0" encoding’”UTF-8” ?>
<!--
email.xml -->
<EMAIL>
<TO>lin@ipfw.edu</TO>
<FROM>lin@hotmail.com</FROM>
<CC>XMLL_in_Action@hotmail.com</CC>
<SUBJECT>XML Example: Basic
email</SUBJECT>
<BODY>This is an XML-based
email.</BODY>
</EMAIL>
Example 2:
XML elements (tags) created for capture information of <PRICE>,
<PICTURE>, and <ARTICLE>.
<PRICE
Currency="Euro"> 26.02 </PRICE>
<PICTURE> </PICTURE>
<ARTICLE>
<TITLE> </TITLE>
<DATE> </DATE>
<AUTHOR>
<FIRSTNAME> </FIRSTNAME>
<LASTNAME> </LASTNAME>
</AUTHOR>
<SUMMARY> </SUMMARY>
<CONTENT> </CONTENT>
</ARTICLE>
Example
3: Empty elements.
<img align =”center”
src=”http://www.etcs.ipfw.edu/~lin/netdiagram.gif” />
<br> </br>
<br/>
XML
Elements, Attributes, and Values
XML elements (tags) are basic components of a
document. All elements in an XML documents have parent-child relationships. Elements can have different content types
(attributes) and may have a set of attribute specifications. Attributes are
contained with an element’s opening tag. Each attribute has a quotation mark
delimited values that describe the purpose and content of the particular
element. Information contained in attributes are called Metadata or “data about
data” which describes the content, description, quality, condition, or other
characteristics of data. For Web applications, metadata can be seen as machine understandable
information is addressed by the W3C Metadata Activity (http://www.w3.org/Metadata/Activity.html).
XML elements must follow these naming rules defined
in XML specification (www.w3.org/TR/REC-cml):
Root Element
Content within XML document can be encoded as
either elements or attributes. For example, a book title can be expressed as
one of the following:
As an element:
<book>
<title>
XML-RPC </title>
*****
</book>
As an attribute:
<book title=”XML-RPC”>
*****
</book>
XML Trees
XML
documents are structured as hierarchical trees. A root element contains
information to show its meaning. As shown in Example 1, the element <EMAIL> is the root element which
has five child elements including <TO>, <FROM>, <CC>,
<SUBJECT>, and <BODY>. In Example 4, again, <lab-room> is the
root tag (element), which contains three elements <labtable>,
<labchair>, and <pc>.
Further elements and attributes are used to describe Lab Tables, Lab
Chairs, and Personal Computer in terms of <quantity>, <quality>,
<color>, <manufacturer>, etc.
Example 4: An XML file for describing a
university computer lab. View et226lab.xml
example.
<?xml version="1.0"?>
<!-- et226lab.xml -->
<lab-room>
<labtable type="rectangular" wood="maple">
<quantity>8</quantity>
<quality>good</quality>
<color>brown</color>
<manufacturer>Steel
Case</manufacturer>
</labtable>
<labchair wood="oak">
<quantity>20</quantity>
<quality>good</quality>
<cushion included="false">
<color>brown</color>
</cushion>
</labchair>
<pc>
<quantity>14</quantity>
<monitor>14</monitor>
<cpu> Intel
Pentium 4 1.2 GHz</cpu>
<harddisk>
40Gbytes</harddisk>
</pc>
</lab-room>

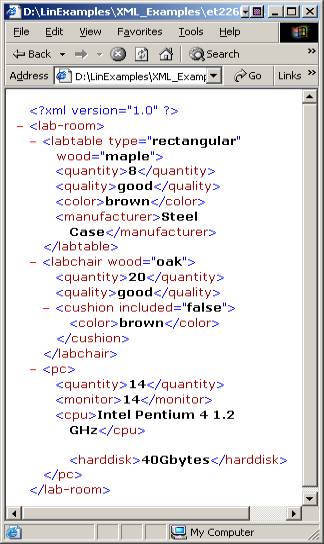

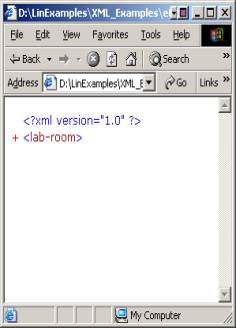

Example
5: XML documents can be viewed with Microsoft Internet Explorer 6.0 in tree
structure format. You can open
et226lab.xml document with Internet Explorer 6.0 to see the left picture with
only the root element, then click the “-/+” sign to expand or contract the
viewed list.
XML
Document Processing
The function of the XML markup is to describe its
storage and logical structure, and to associate attribute-value pairs with its
logical structures
There is
a need to extract XML data or content and display it using a Web browser. For
example, we have an XML page named home_appliance_catalog.xml, which describes
the <Washer> product of <HOME_APPLIANCE> catalog. To bind this XML data on a Web page, we need
to make a reference to the XML data source. This is accomplished by placing the
following code in the example HTML page named “ha_catalog_display.html”:
<xml src="home_appliance_catalog.xml"
id="xmlhomeapp"
async="false">
</xml>
We use
its DATASRC property with the same id=”xmlhomeapp” to
reference to the same XML data island:
<table datasrc="#xmlhomeapp" width="100%" border="1">
We then use HTML <SPAN> tags to
embed DATAFLD to extract the bound data, and display content:
<tr
align="center">
<td><span
datafld="product_name"></span></td>
<td><span
datafld="product_id"></span></td>
<td><span
datafld="EnergyStarQualified"></span></td>
<td><span
datafld="price"></span></td>
</tr>
When you open the ha_catalog_display.html page with
Microsoft Internet Explorer, the XML content should display in HTML table
format.

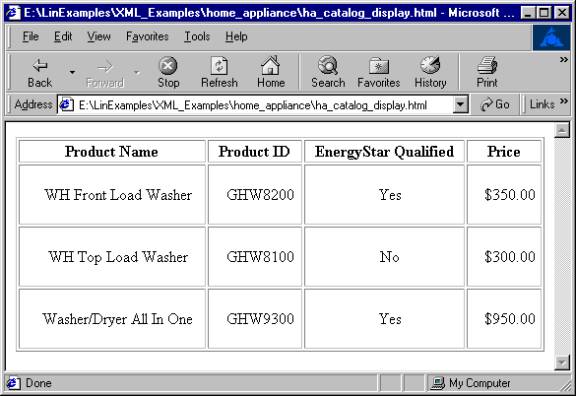

Example 6: Binding XML data and display it with a
IE Web browser. We created two files as shown below:
Then open the HTML page to read and display the XML
data with the HTML table format.
<html>
<!--
ha_catalog_display.html -->
<body>
<xml src="home_appliance_catalog.xml"
id="xmlhomeapp"
async="false">
</xml>
<table datasrc="#xmlhomeapp" width="100%" border="1">
<thead>
<th>Product Name</th>
<th>Product ID</th>
<th>EnergyStar Qualified</th>
<th>Price</th>
</thead>
<tr
align="center">
<td><span
datafld="product_name"></span></td>
<td><span
datafld="product_id"></span></td>
<td><span
datafld="EnergyStarQualified"></span></td>
<td><span
datafld="price"></span></td>
</tr>
</table>
</body>
</html>
<?xml
version="1.0" encoding="utf-8" ?>
<!--
home_appliance_catalog.xml -->
<!--
Edited with Microsoft Notepad -->
<HOME_APPLIANCES>
<WASHER>
<product_name>WH Front Load
Washer</product_name>
<product_id> GHW8200</product_id>
<EnergyStarQualified>Yes</EnergyStarQualified>
<price>$350.00</price>
</WASHER>
<WASHER>
<product_name>WH Top Load
Washer</product_name>
<product_id> GHW8100</product_id>
<EnergyStarQualified>No</EnergyStarQualified>
<price>$300.00</price>
</WASHER>
<WASHER>
<product_name>Washer/Dryer All
In One </product_name>
<product_id> GHW9300</product_id>
<EnergyStarQualified>Yes</EnergyStarQualified>
<price>$950.00</price>
</WASHER>
</HOME_APPLIANCES>
WML
(Wireless Markup Language) – a WAP
(Wireless Application Protocol) WML specification endorsed by Ericsson,
Motorola, Nokia, and Unwired PlanetWML.
VoiceXML
Standard - VoiceXML is a Document
Type Definition (DTD) created by four companies AT&T, IBM, Lucent Technologies,
and Motorola for implementing interactive voice recognition (IVR) applications
as Web-based telephony systems.
MathML - Mathematics Markup Language (http://www.w3.org/1999/07/REC-MathML-19990707/):
<plus/>, <times/>, <power/>, <mrow>, <msup>, <mi>, <mn>
EdaXML -
XML-based symbols mapped directly to its database of millions of electronic
components. The availability of these XML (Extensible Markup Language) symbols
allows printed circuit board (PCB) designers and design teams to perform
cross-platform design using electronic design automation (EDA) tools from a
variety of vendors.
XML For Automation Devices - It covers basic elements in automation
including algorithms, programs, controllers and interfaces (http://www.gca.org/papers/xmleurope2001/papers/html/s07-1.html)
CIM/XML
– a language for representing power system models http://www.langdale.com.au/CIMXML/
The
Control System Modeling Language www.slac.stanford.edu/econf/C011127/talks/THCT004.pdf
The
LandXML schema (http://www.anvil.eu.com/XML.htm)
- facilitates the exchange of data created during the Land Planning, Civil
Engineering and Land Survey process.
