CPET 565/CPET 499 Mobile Computing Systems
Lecture
Note
UML
Diagrams
2012/11/19

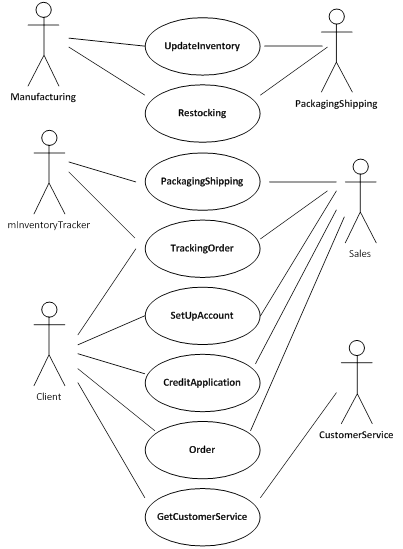

Use
Cases (Inventory Tracking Example)

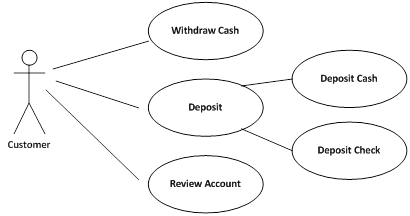

Use
Cases (ATM Machine Example)
Use
Case Specification (An Example)
·
Use Case Name:
Withdraw Cash
·
Use Case Purpose:
This use case provides the function for a customer to withdraw cash from an ATM
machine.
·
Optimistic flow:
a)
Customer slides
the bank card, enters the pin#.
b)
Customer chooses
either Checking account or Saving account for
withdrawing.
c)
Customer makes a
choice, enter the desired amount, and the ATM machine checks if the fund is
sufficient for withdrawing.
d)
ATM counts and dispenses the bills.
e)
ATM asks if a
printed receipt is needed.
f)
ATM exits and
redisplay welcome message.
·
Pragmatic flows
o
Conditions
triggering alternative flow
§ Condition 1: Customer slides the bank card, but enter
an incorrect pin#
§ ….
§ Condition 2: There is insufficient fund in the account
§ ….
§ Condition 2:
Sequence
Diagram (Client Order Process)
Example
Classes for Inventory App
Source: [9][10]
InventoryItem class (collaborators: NONE)
·
itemNumber
·
name
·
description
·
unitPrice
·
totalPrice
Order class (responsibility; collaborators: OrderItem class, Cutromer class)
·
orderID: string
·
orderDate: String
·
dateShipped
·
orderItems
·
orderedTotals
·
orderDate: String
·
costRange: float
·
priceRange: float
·
tax: float
·
priorityCode: int
·
completionProgress: float
·
rawMaterialIssued: Boolean
·
customerInfo: String
·
deliveryInfo: String
·
printInvoice()
·
cancel()
Customer class (collaborators: Order
class, CustomerAddress class)
·
name
·
phoneNumber
·
customerID
·
makeOrder()
·
cancelOrder()
·
makePayment()
OrderItem class (collaborators: InventoryItem
class)
·
quantity
·
inventoryItem()
·
calculateTotal()
